Landscape series

Landscape VM.i.KF
indoor
pixel pitch mm 1.9 - 2.5 - 2.6 - 2.8 - 3.9
cabinet size mm 500x250x45 - 750x250x45 - 1000x250x45
brightness nits 800 - 1000
ip 30

magnetico e super sottile
più preciso
più flessibile

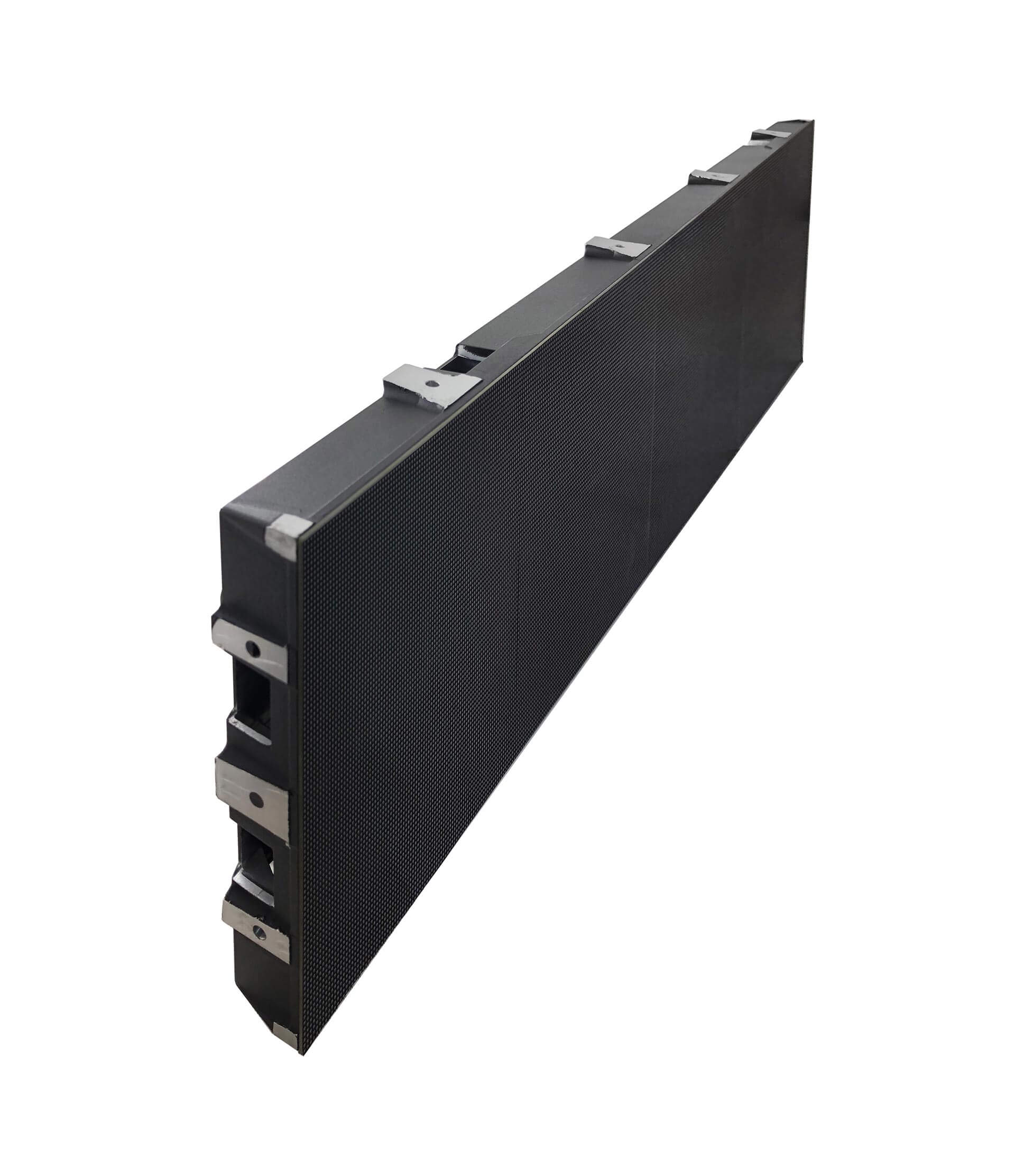

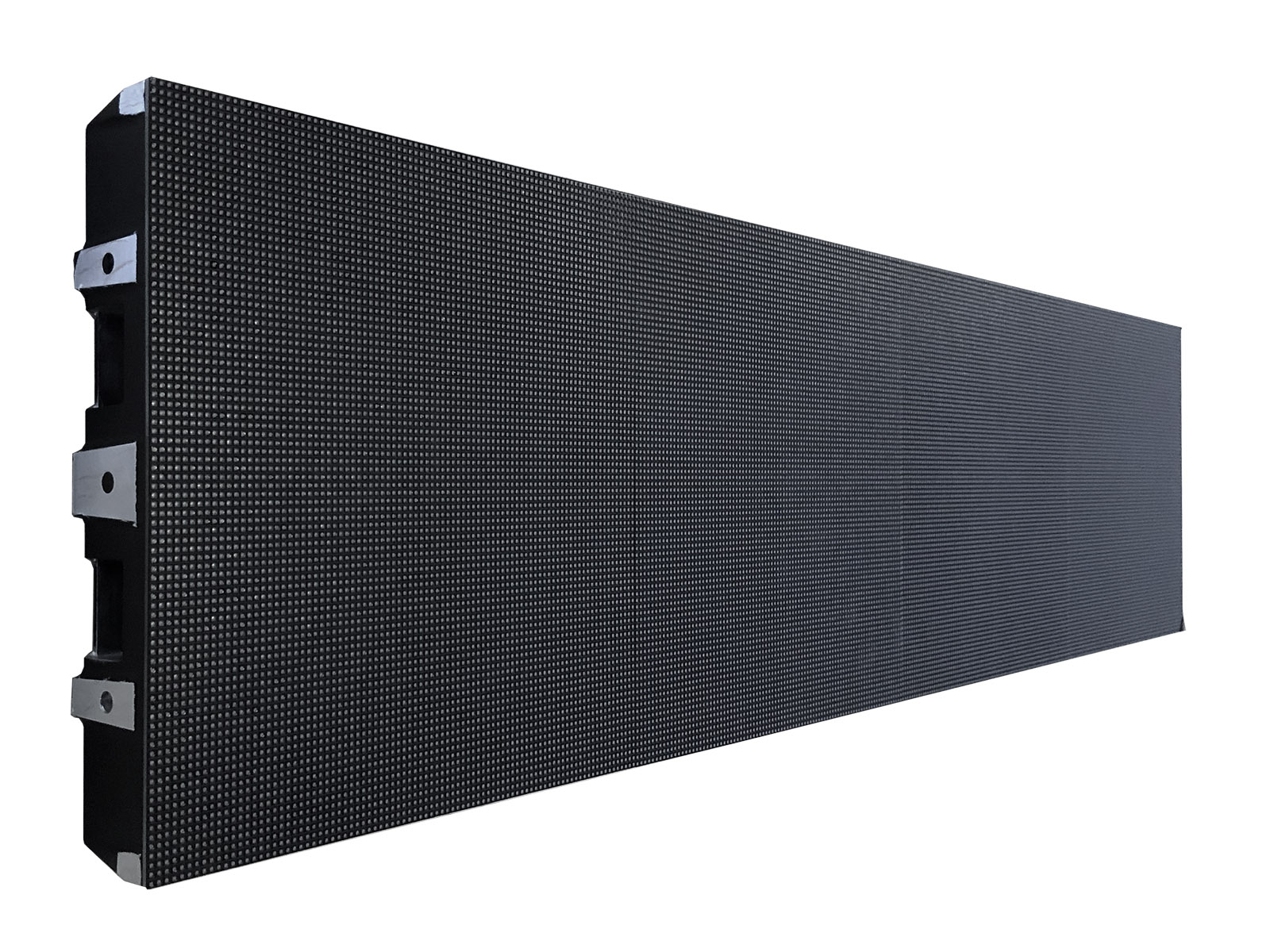

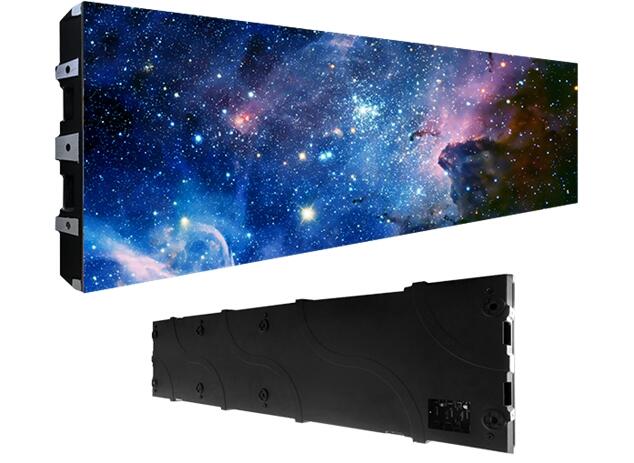

Landscape è un cabinet con solo 45 mm di profondità, in alluminio pressofuso e con montaggio diretto a parete che garantisce una installazione di alta precisione, facile e veloce

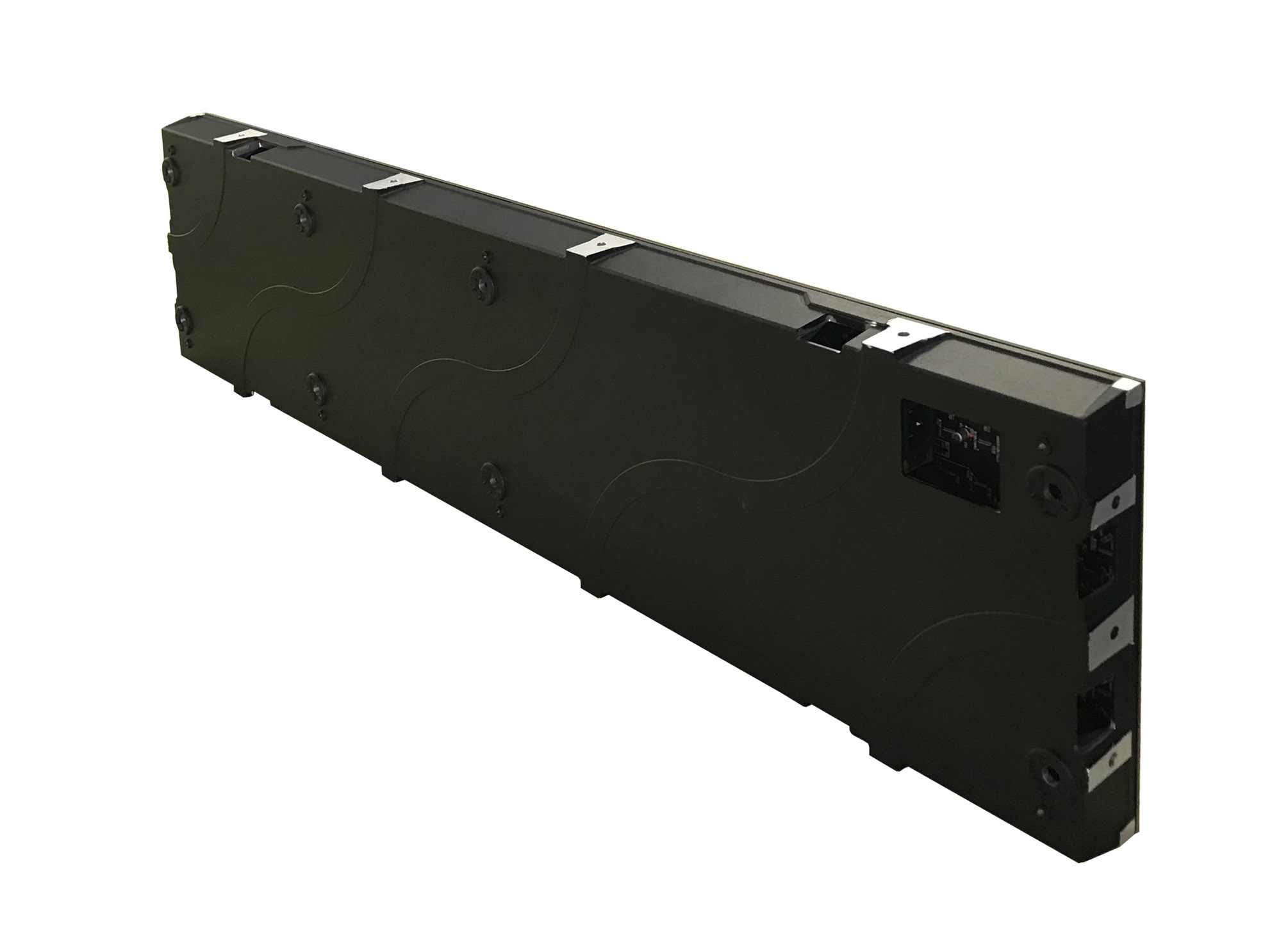

montaggio a parete

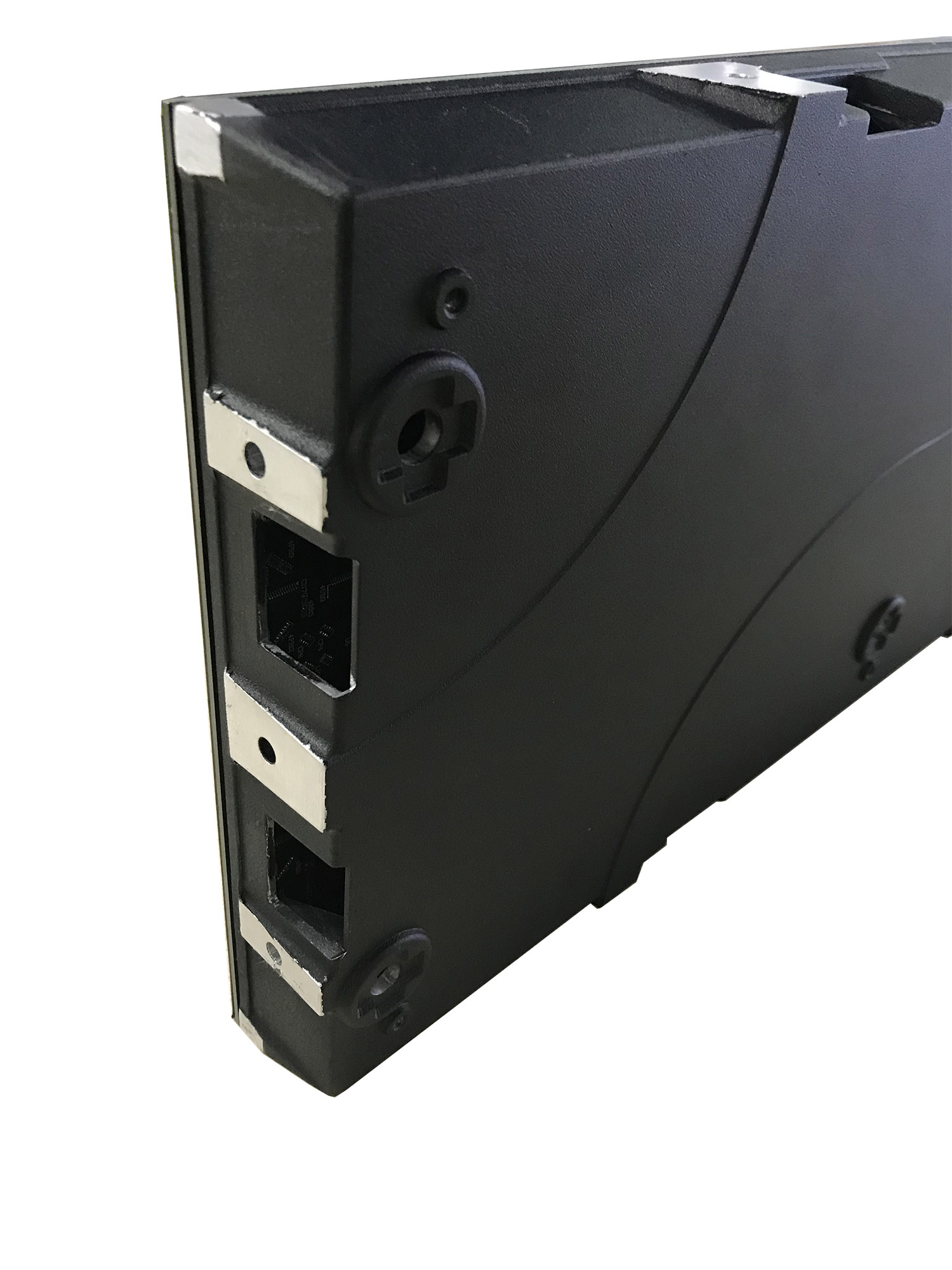

l’accesso frontale permette di estrarre velocemente i moduli magnetici, l'alimentatore e le receiving cards per una facile manutenzione
una grande quantità di moduli in stock garantisce tempi di consegna veloci

accesso frontale

i cabinet Landscape possono essere installati in orizzontale e in verticale e le tre diverse dimensioni consentono configurazioni differenti, concave e convesse

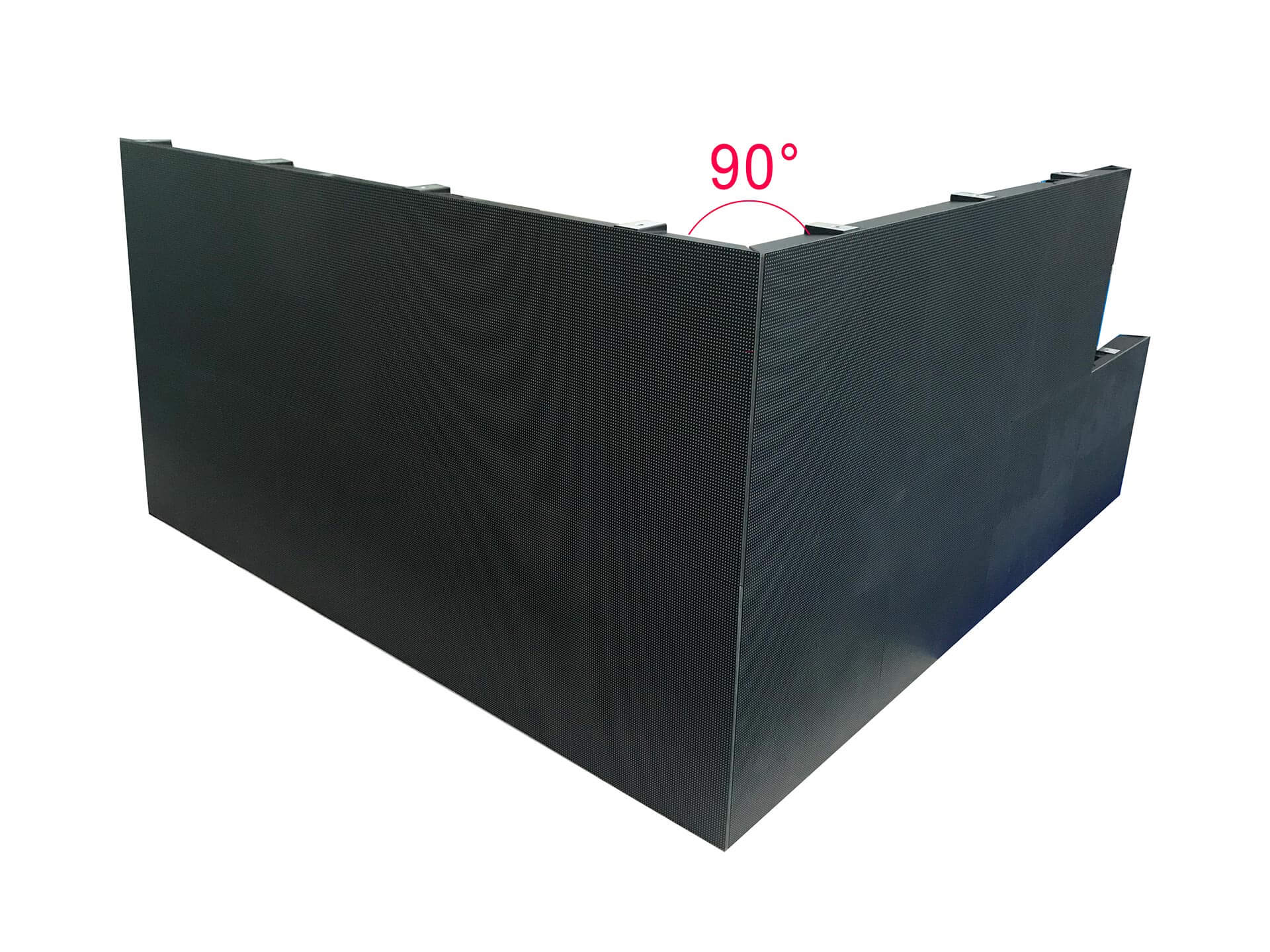

la versione con angolo tagliato a 45° consente di realizzare soluzioni ad angolo retto

Specifiche tecniche
Landscape series

pixel pitch mm	1.9
LED type	SMD 3in1
module size mm	250x250
module resolution px	128x128
density px/sqm	262144
cabinet size mm	500/750/1000x250x45
cabinet material	aluminum
cabinet weight kg	4.0 - 5.1 - 6.3
max power consumption w/sqm	600
avg power consumption w/sqm	200
colors million	16.7
grayscaele bits	16
color temperature k	3000 - 10000
frequency refresh hz	1920 - 3840
brightness nits	800
ip grade	30
viewing angle	140° / 140°

pixel pitch mm	2.5
LED type	SMD 3in1
module size mm	250x250
module resolution px	100x100
density px/sqm	160000
cabinet size mm	500/750/1000x250x45
cabinet material	aluminum
cabinet weight kg	4.0 - 5.1 - 6.3
max power consumption w/sqm	600
avg power consumption w/sqm	200
colors million	16.7
grayscaele bits	16
color temperature k	3000 - 10000
frequency refresh hz	1920 - 3840
brightness nits	800
ip grade	30
viewing angle	140° / 140°

pixel pitch mm	2.6
LED type	SMD 3in1
module size mm	250x250
module resolution px	96x96
density px/sqm	147456
cabinet size mm	500/750/1000x250x45
cabinet material	aluminum
cabinet weight kg	4.0 - 5.1 - 6.3
max power consumption w/sqm	600
avg power consumption w/sqm	200
colors million	16.7
grayscaele bits	16
color temperature k	3000 - 10000
frequency refresh hz	1920 - 3840
brightness nits	1000
ip grade	30
viewing angle	140° / 140°

pixel pitch mm	2.8
LED type	SMD 3in1
module size mm	250x250
module resolution px	88x88
density px/sqm	123904
cabinet size mm	500/750/1000x250x45
cabinet material	aluminum
cabinet weight kg	4.0 - 5.1 - 6.3
max power consumption w/sqm	600
avg power consumption w/sqm	200
colors million	16.7
grayscaele bits	16
color temperature k	3000 - 10000
frequency refresh hz	1920 - 3840
brightness nits	1000
ip grade	30
viewing angle	140° / 140°

pixel pitch mm	3.9
LED type	SMD 3in1
module size mm	250x250
module resolution px	64x64
density px/sqm	65536
cabinet size mm	500/750/1000x250x45
cabinet material	aluminum
cabinet weight kg	4.0 - 5.1 - 6.3
max power consumption w/sqm	600
avg power consumption w/sqm	200
colors million	16.7
grayscaele bits	16
color temperature k	3000 - 10000
frequency refresh hz	1920 - 3840
brightness nits	1000
ip grade	30
viewing angle	140° / 140°

specification subjected to improvement without prior notice, above details only for reference - the products shown in the images are for illustrative purposes only - version february 2021 - all rights reserved and belong to videomobile srl
