Flex series
indoor
pixel pitch mm 2.5 - 2.6 - 4 - 5
cabinet size mm 240x120 - 250x125 - 320x160
brightness nits 900 - 1000
ip 20 - 30
pixel pitch mm 2.5 - 2.6 - 4 - 5
cabinet size mm 240x120 - 250x125 - 320x160
brightness nits 900 - 1000
ip 20 - 30
magnetico

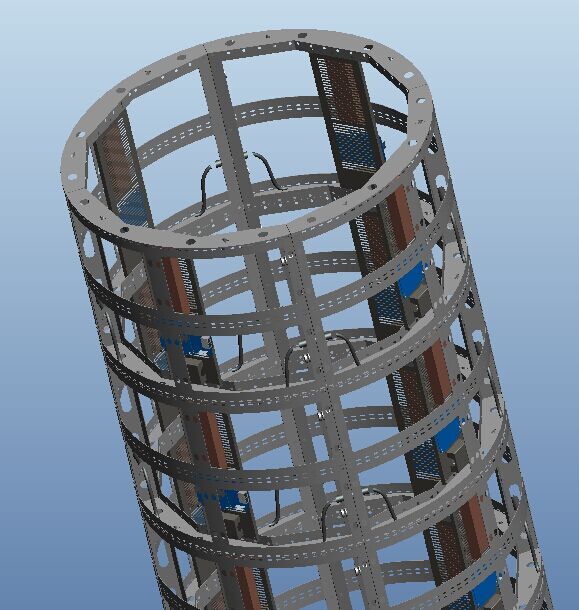

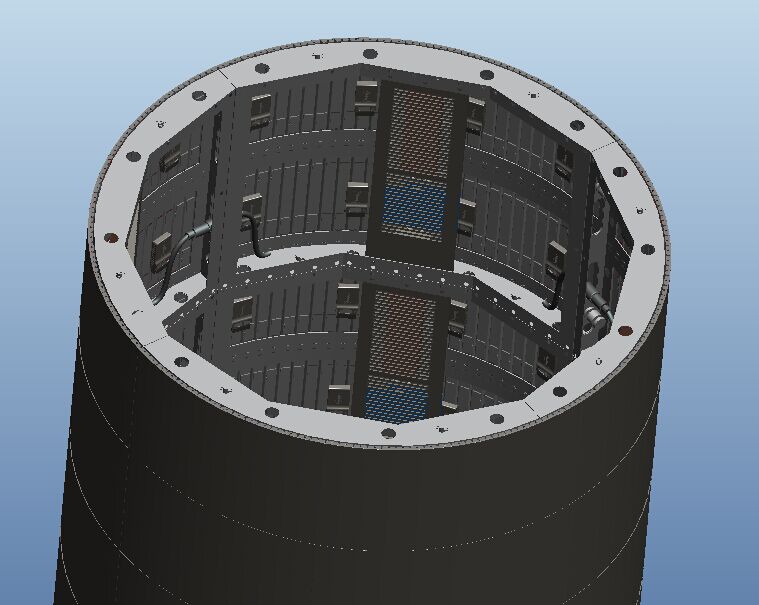

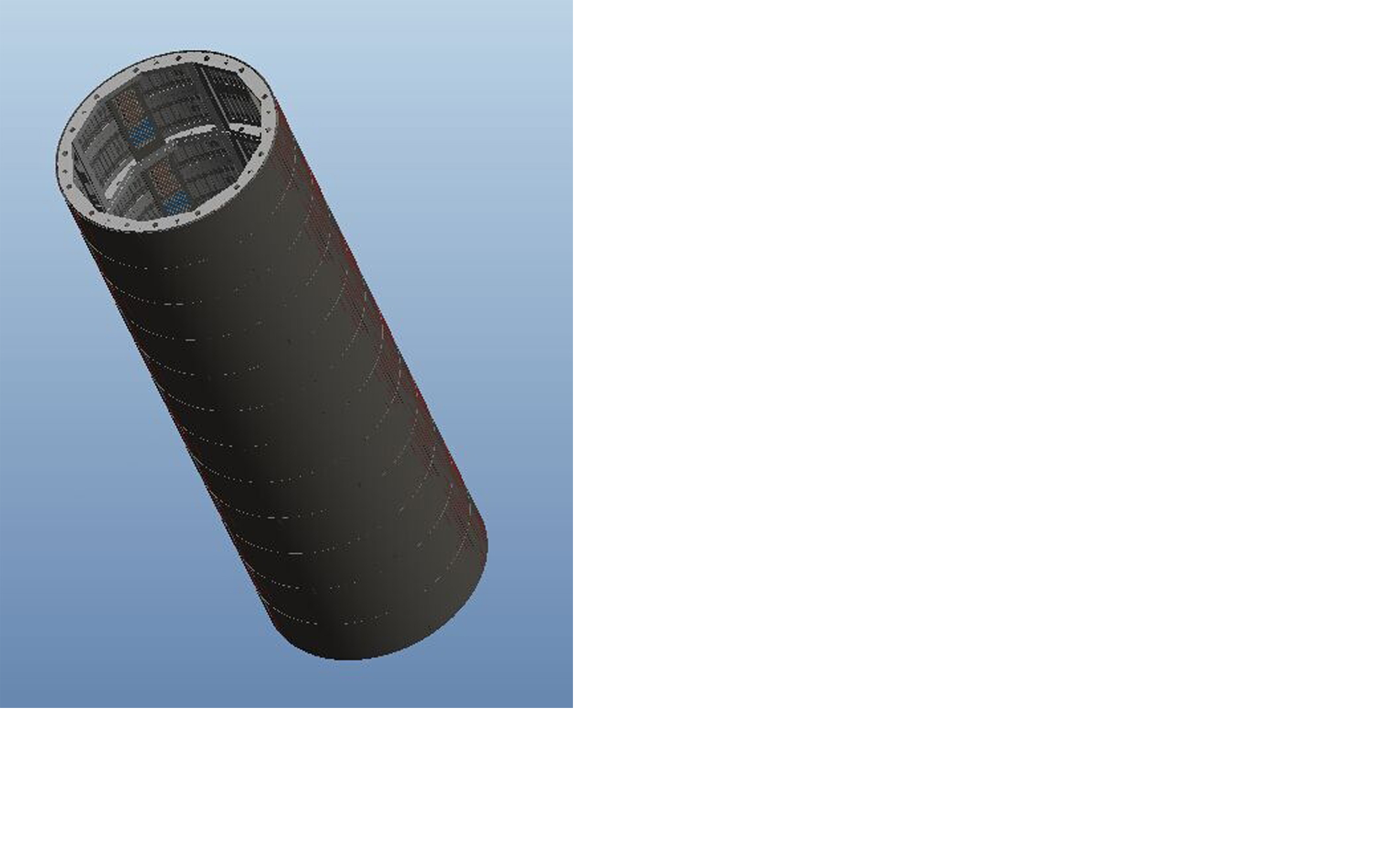

adatto a forme curve, concave, convesse e in torsione
adatto a forme curve, concave, convesse e in torsione

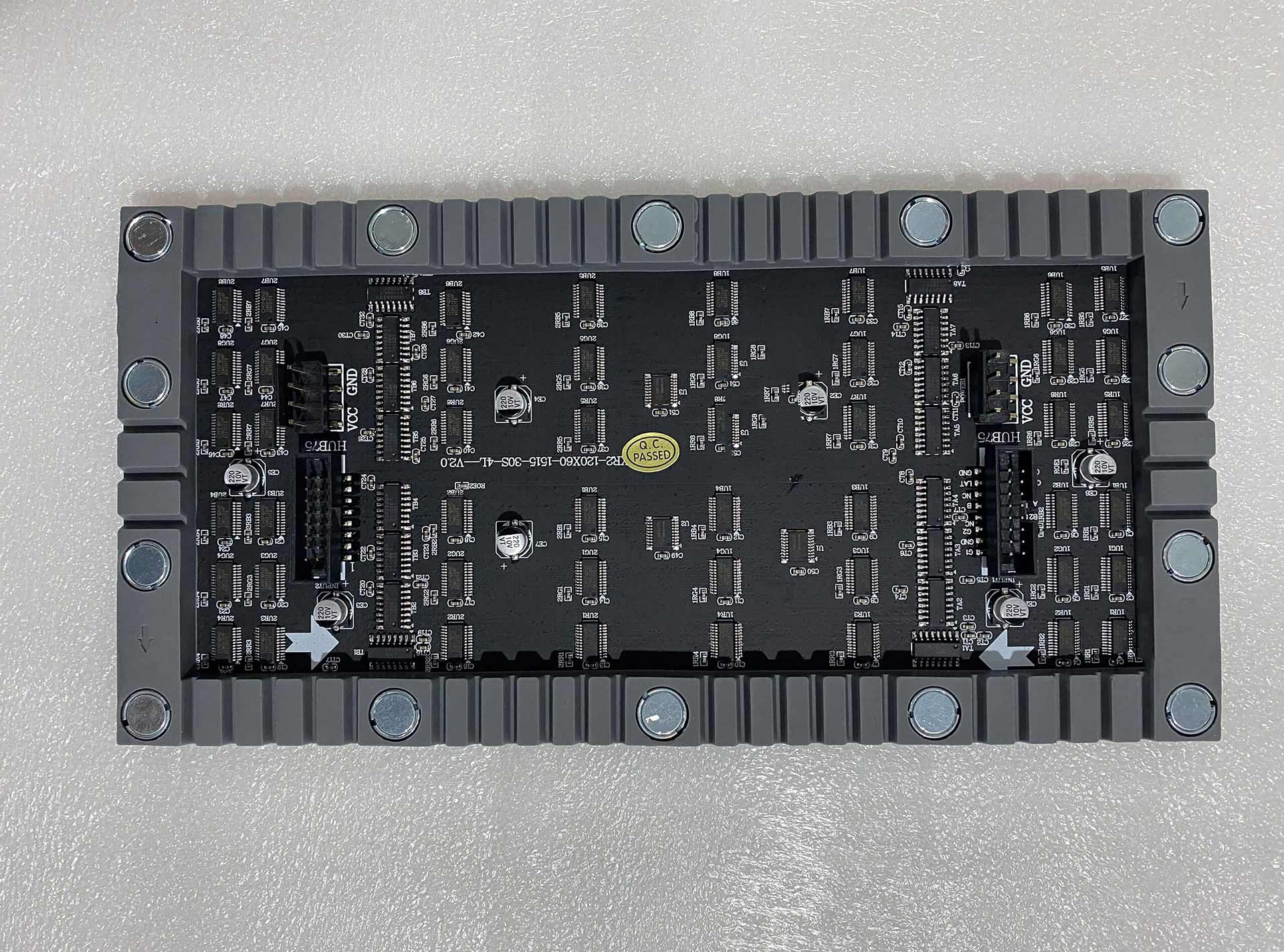

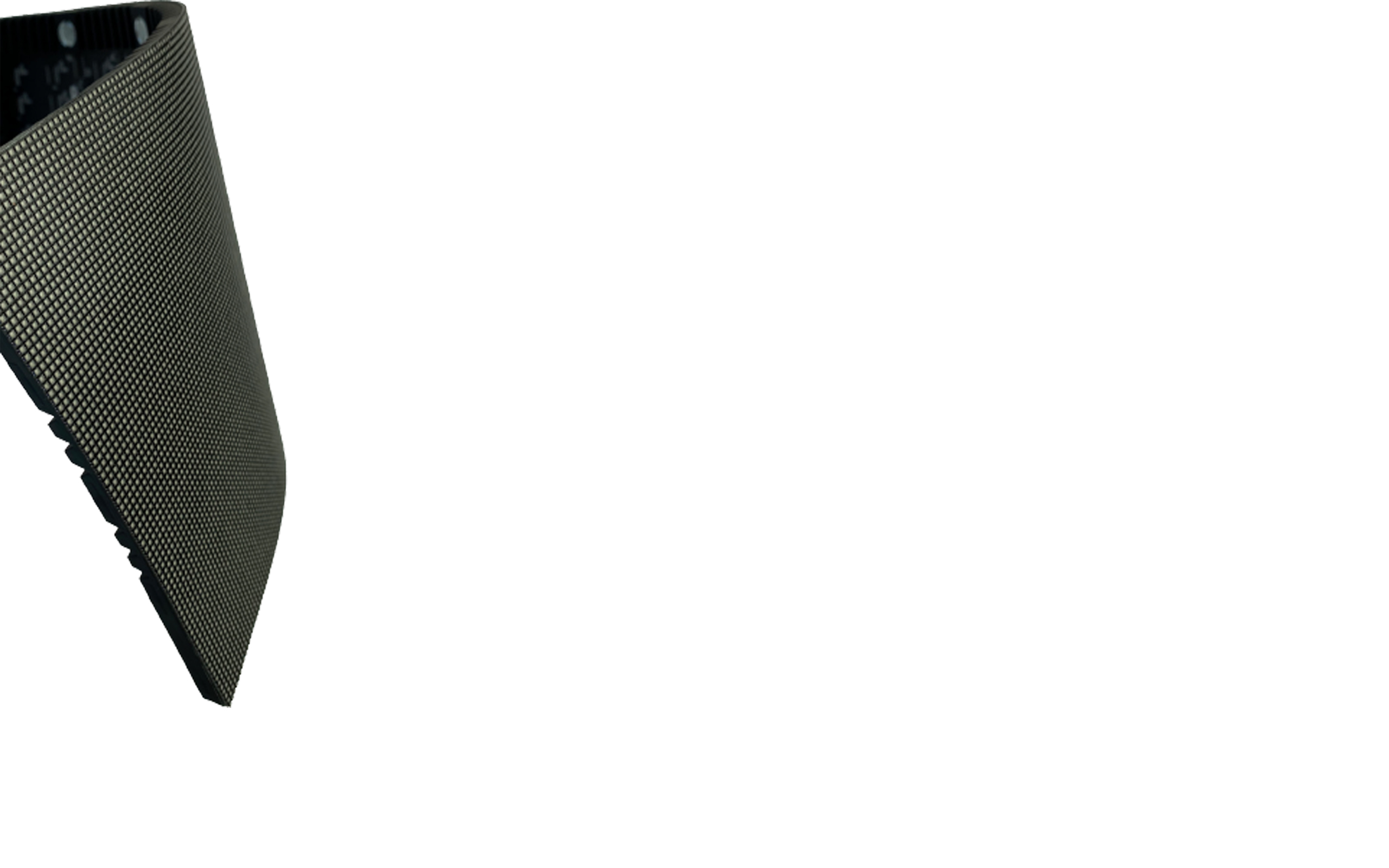

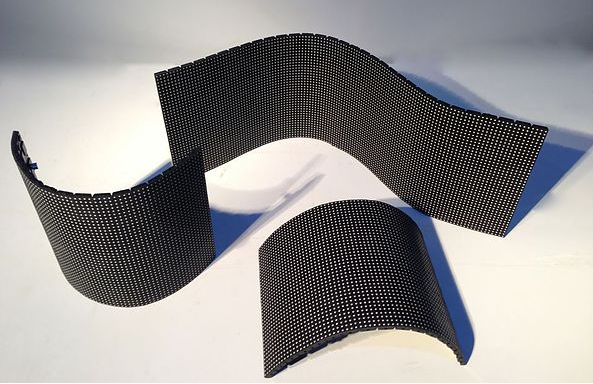

Flex ha moduli flessibili adatti a tutte le forme curve, concave, convesse e in torsione

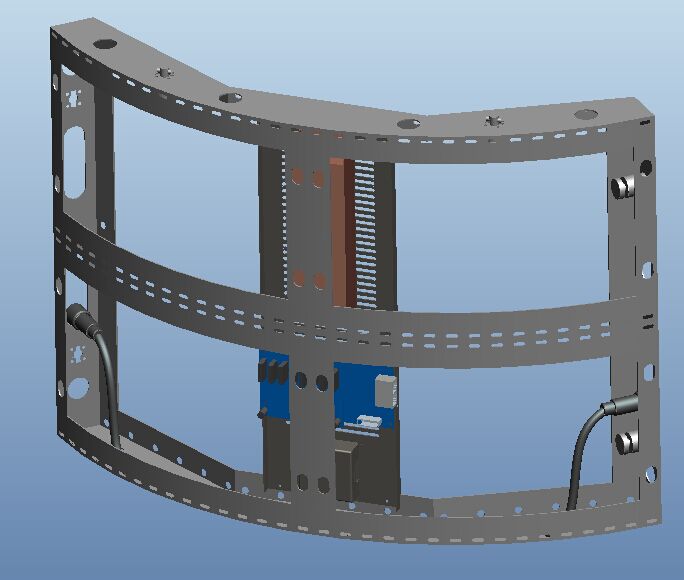

il peso ridotto permette il fissaggio magnetico su leggeri telai metallici
la grande precisione nella composizione dei cabinet permette la migliore resa delle immagini e l’ampio angolo di visione per fruizione massima laterale e dal basso
il peso ridotto permette il fissaggio magnetico su leggeri telai metallici
la grande precisione nella composizione dei cabinet permette la migliore resa delle immagini e l’ampio angolo di visione per fruizione massima laterale e dal basso
Specifiche tecniche
Flex series
Flex 2.5
| pixel pitch mm | 2.5 |
|---|---|
| LED type | SMD 3in1 |
| module size mm | 240x120 |
| module resolution px | 96x48 |
| density px/sqm | 160000 |
| cabinet size mm | custom |
| cabinet material | steel - iron |
| cabinet weight kg | 0.21 |
| max power consumption w/sqm | 868 |
| avg power consumption w/sqm | 305 |
| colors million | 16.7 |
| grayscaele bits | 16 |
| color temperature k | adjustable |
| frequency refresh hz | 1920 - 3840 |
| brightness nits | 900 |
| ip grade | 30 |
| viewing angle | 140° / 140° |
Flex 2.6
| pixel pitch mm | 2.6 |
|---|---|
| LED type | SMD 3in1 |
| module size mm | 250x125 |
| module resolution px | 96x48 |
| density px/sqm | 147692 |
| cabinet size mm | custom |
| cabinet material | steel - iron |
| cabinet weight kg | 0.25 |
| max power consumption w/sqm | 800 |
| avg power consumption w/sqm | 250 |
| colors million | 16.7 |
| grayscaele bits | 16 |
| color temperature k | adjustable |
| frequency refresh hz | 1920 - 3840 |
| brightness nits | 1000 |
| ip grade | 20 |
| viewing angle | 140° / 120° |
Flex 4
| pixel pitch mm | 4 |
|---|---|
| LED type | SMD 3in1 |
| module size mm | 240x120 |
| module resolution px | 60x30 |
| density px/sqm | 62500 |
| cabinet size mm | custom |
| cabinet material | steel - iron |
| cabinet weight kg | 0.25 |
| max power consumption w/sqm | 722 |
| avg power consumption w/sqm | 253 |
| colors million | 16.7 |
| grayscaele bits | 16 |
| color temperature k | adjustable |
| frequency refresh hz | 1920 - 3840 |
| brightness nits | 1000 |
| ip grade | 30 |
| viewing angle | 140° / 140° |
Flex 5
| pixel pitch mm | 5 |
|---|---|
| LED type | SMD 3in1 |
| module size mm | 320x160 |
| module resolution px | 64x32 |
| density px/sqm | 40000 |
| cabinet size mm | custom |
| cabinet material | steel - iron |
| cabinet weight kg | 0.288 |
| max power consumption w/sqm | 480 |
| avg power consumption w/sqm | 240 |
| colors million | 16.7 |
| grayscaele bits | 16 |
| color temperature k | adjustable |
| frequency refresh hz | 1920 - 3840 |
| brightness nits | 1000 |
| ip grade | 30 |
| viewing angle | 120° / 160° |
specification subjected to improvement without prior notice, above details only for reference - the products shown in the images are for illustrative purposes only - version february 2021 - all rights reserved and belong to videomobile srl
installazioni con Flex series
